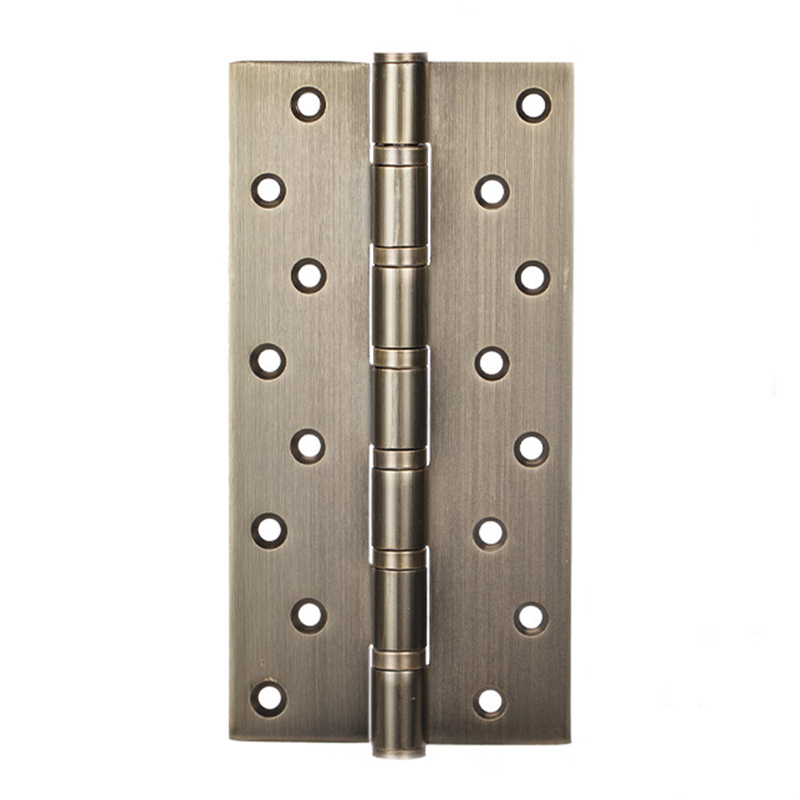

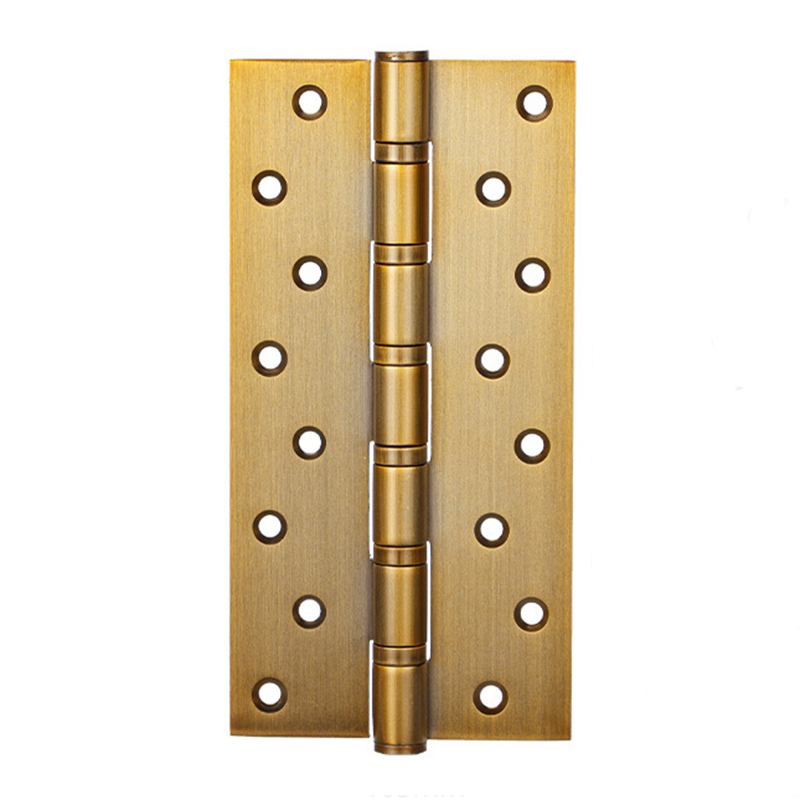

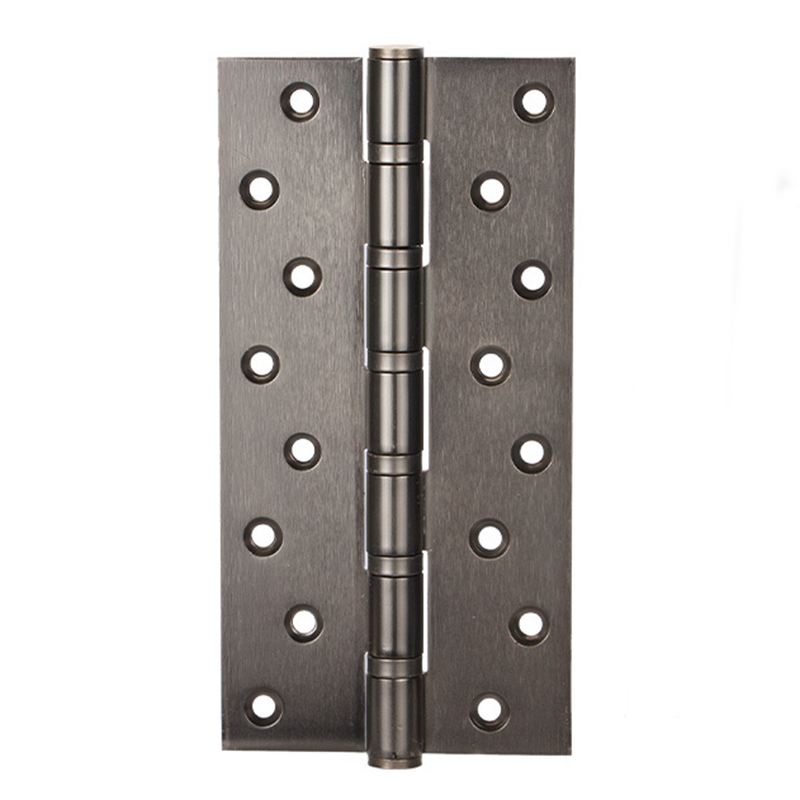

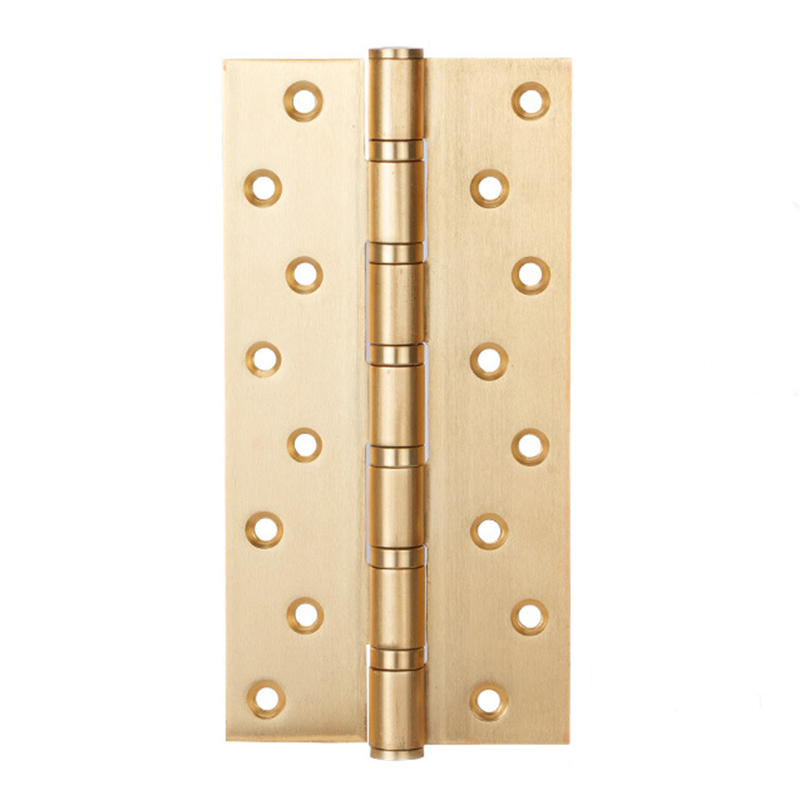

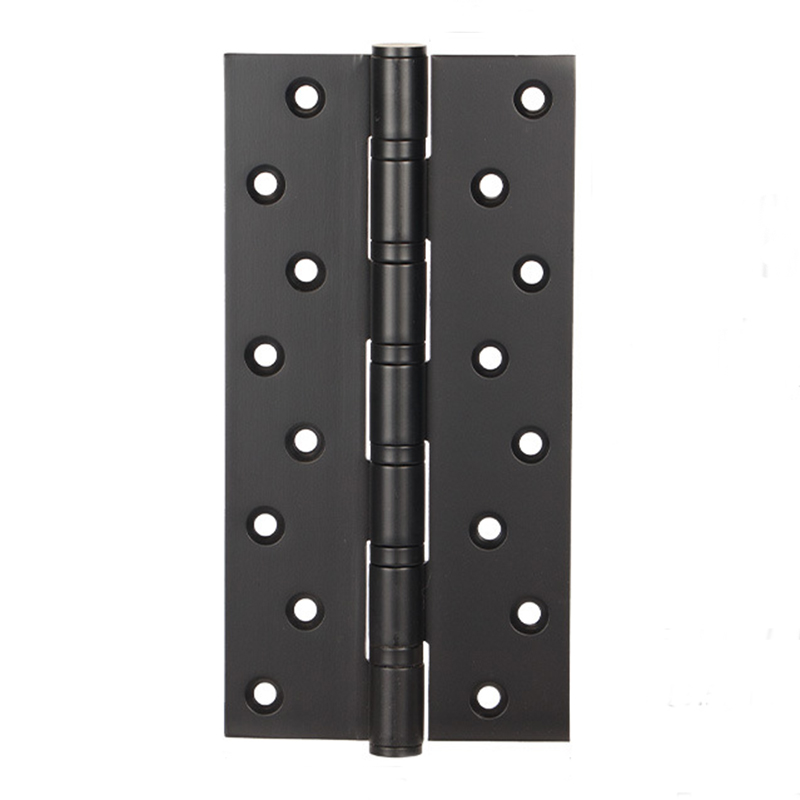

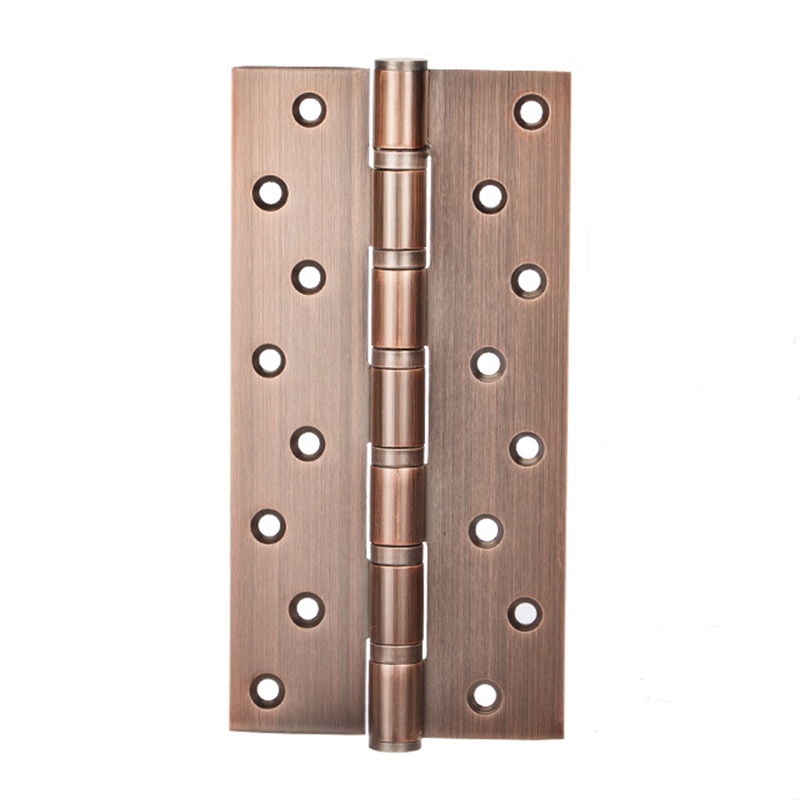

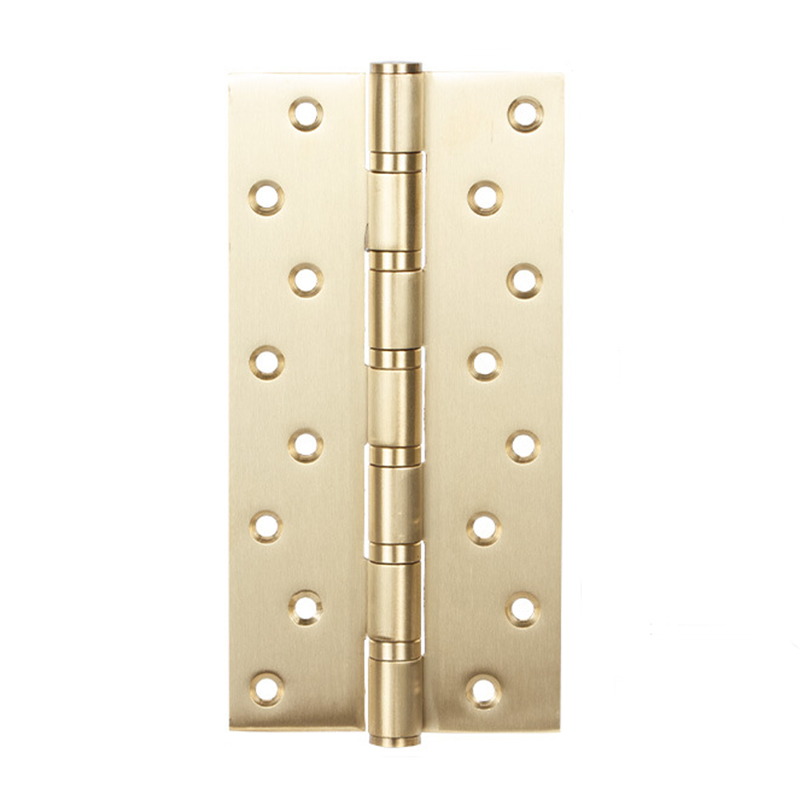

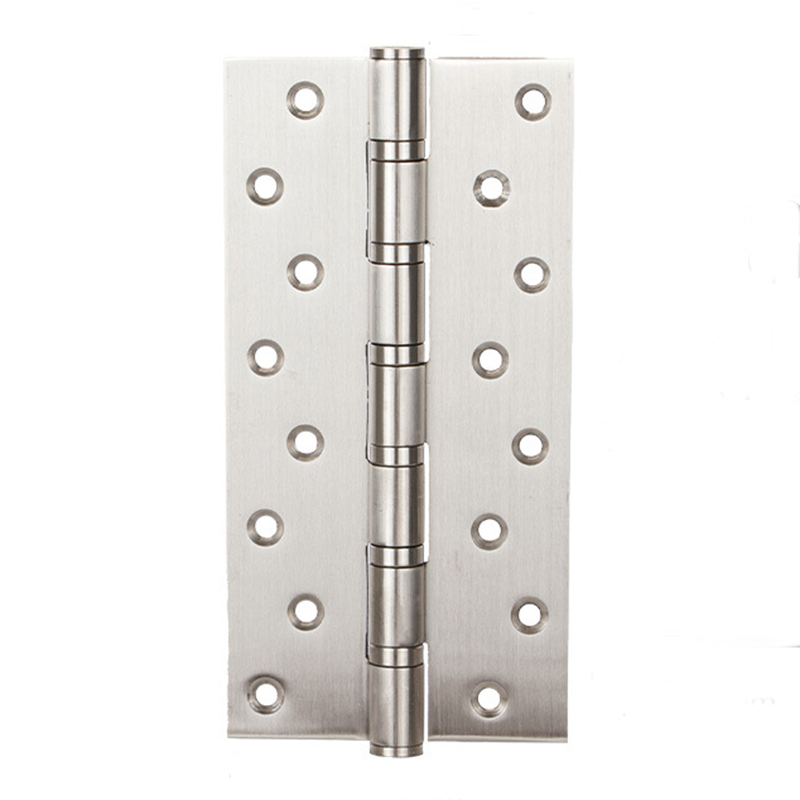

8"×4"×3.5mm Ø16 6BB Butt Hinge

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Previous

Next

 Item Code is HY84358.
 Machined for Precise Installation and Smooth Movement.
 Furnished with Rust-Proof Pins for Added Durability.
 Durable Design for Long-Lasting Performance.
 For Use on Residential Entry and Commercial Entry Doors.
 Engineered with Stainless Steel for Corrosion-Free Performance.
 Ball Bearings Provide Silent Opening and Closing.
 Non-Rising Removable Pin with Tip and Plug.
 Hinges Come Two Per Box, with 16 Flat-Head Phillips Countersunk Screws.
 Non-Adjustable Hinge.
 From Guangdong, China.

Description

CORE DIMENSIONS

Length	203mm
Width	103mm
Leaf Thickness	3.5mm
Knuckle Diameter	Ø16mm

DETAILS

Product Type	Full Mortise, Ball Bearing, Butt Hinge
Base Material	SS304/SS201
Hinge Corners	Square
Hinge Pin Type	Non-Removable
Finial Cap	Standard Finial Cap
Number of Ball Bearing	6
Leaf Screw Holes	16
Edge Treatment	Deburred & Polished
Finish

ASSEMBLY

Installation Required	Yes
Parts	Flat-head Phillips Countersunk Screws

PACKAGING

Select Amount	White Box	Color Box	Blister Card
Unit Pack	1 piece/polybag	1 piece/polybag
Retail Box	1 pair/inner box	1 pair/inner box	1 pair/ blister card
Master Carton	50 boxes/export carton	50 boxes/export carton	50 blister card /export carton
