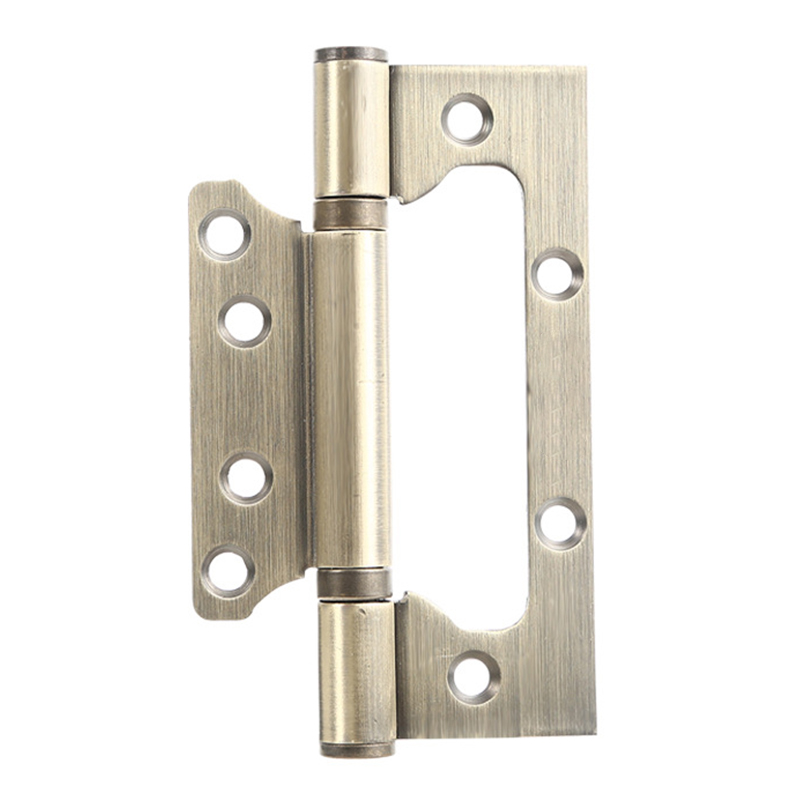

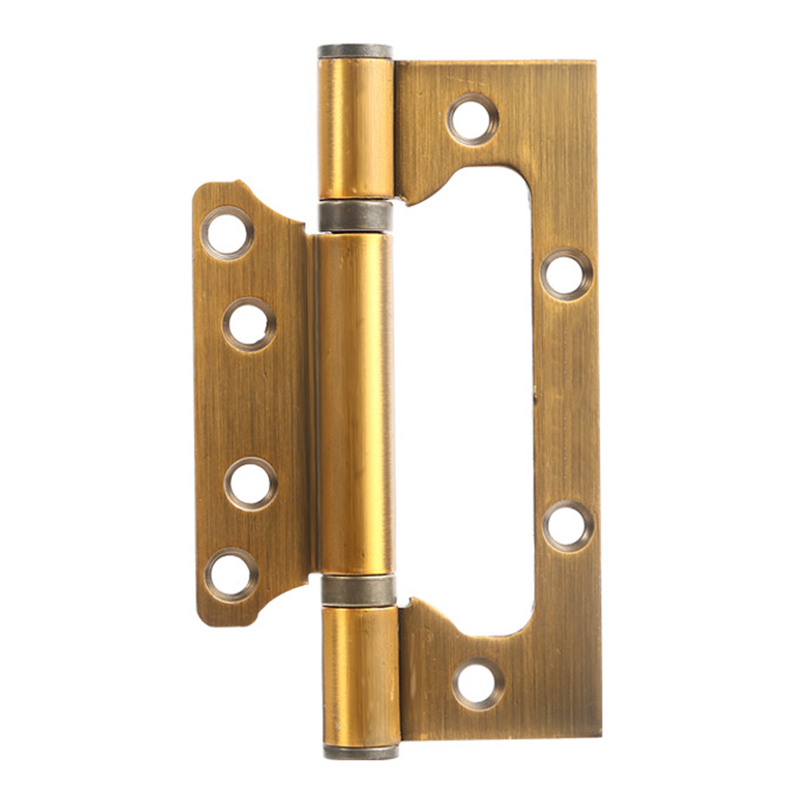

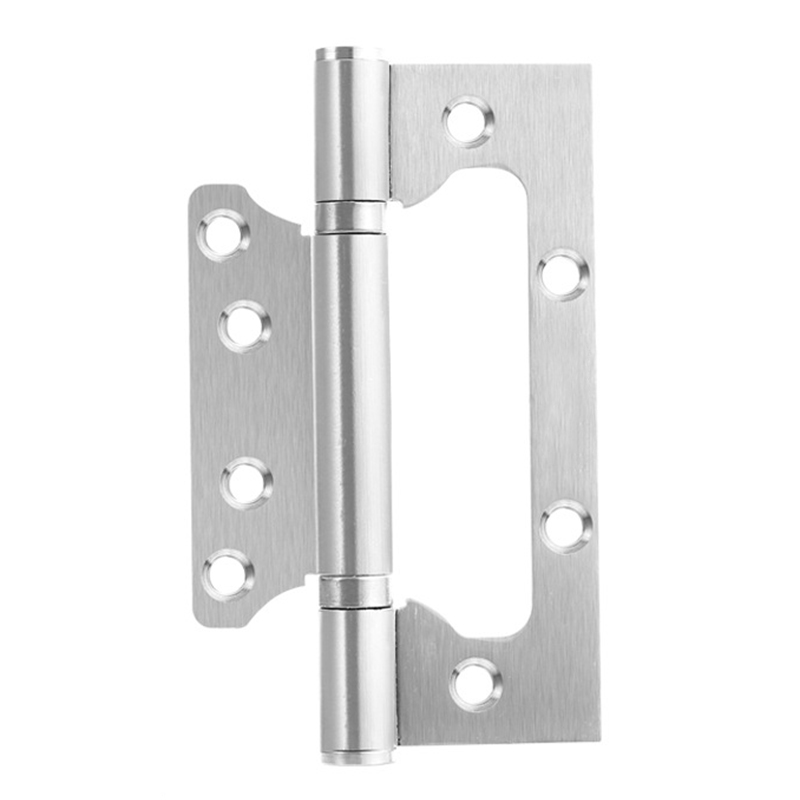

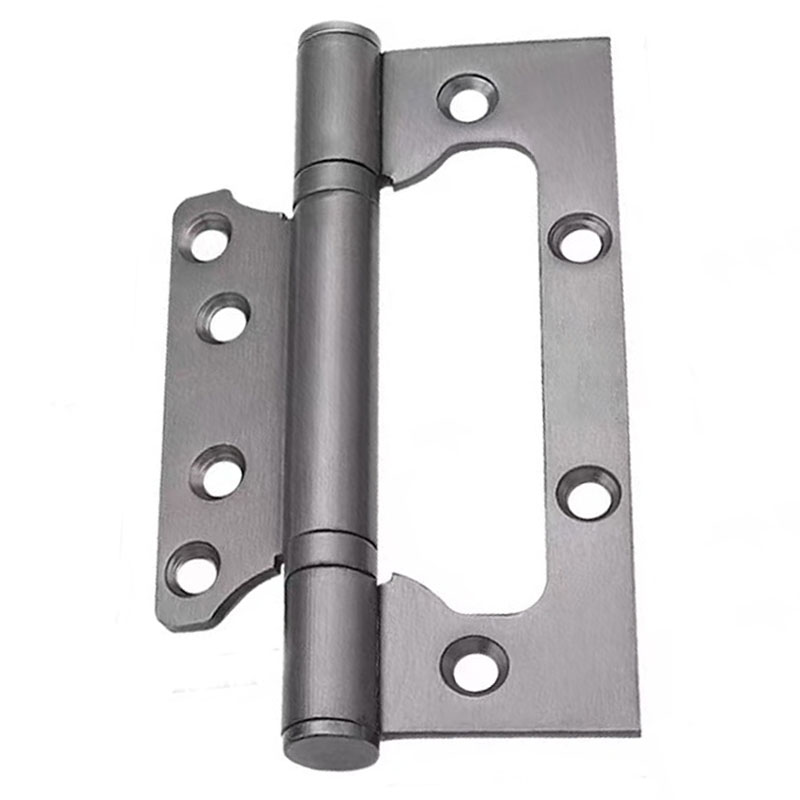

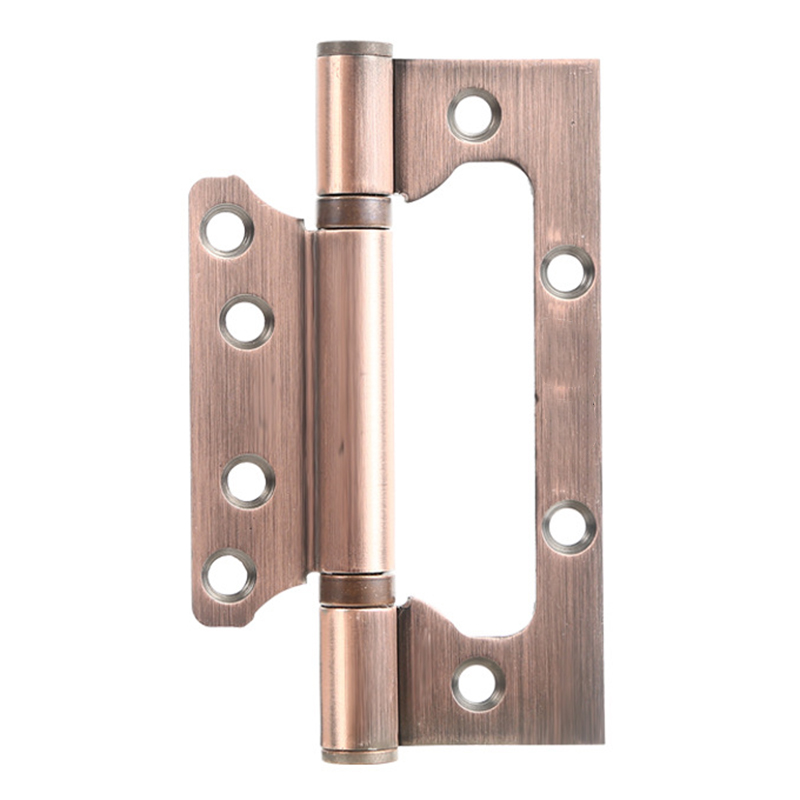

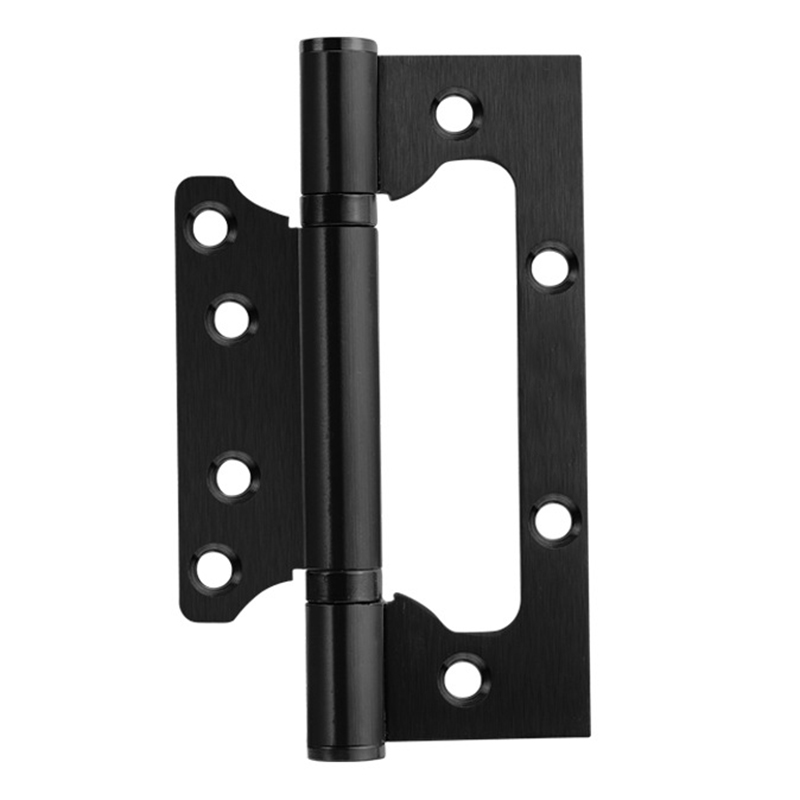

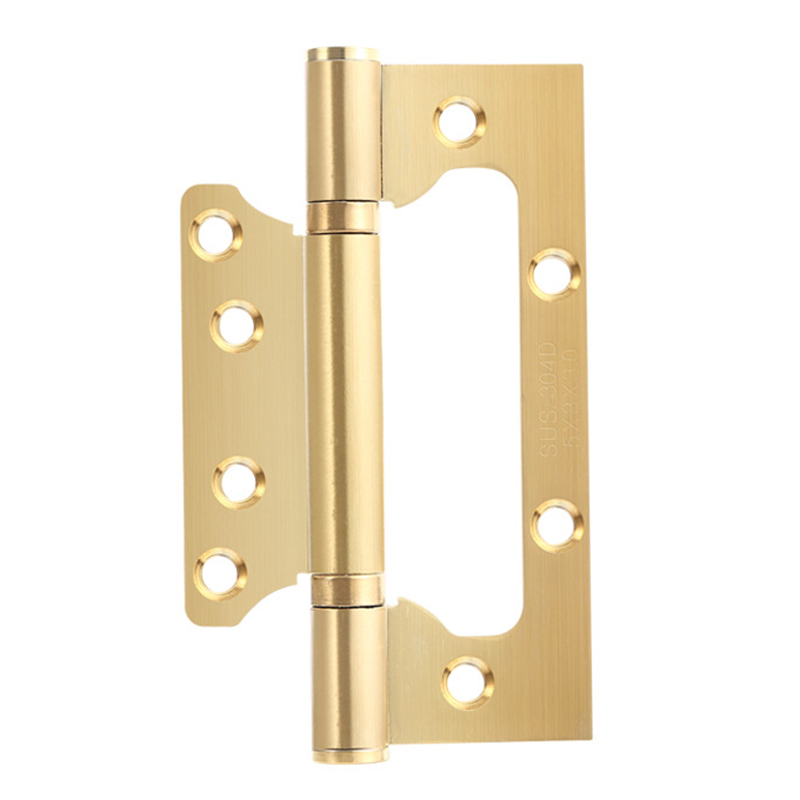

5"×3"×3.0mm Ф14 2BB Butterfly Hinge

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Previous

Next

 Item Code is ZM5330.
 Machined for Precise Installation and Smooth Movement.
 Furnished with Rust-Proof Pins for Added Durability.
 Authentic Reproduction of a Classic Style.
 Easy Surface-Mount Installation.
 Engineered with Stainless Steel for Corrosion-Free Performance.
 Ball Bearings Provide Silent Opening and Closing.
 Non-Rising Removable Pin with Tip and Plug.
 Hinges Come Two Per Box, with 16 Flat-Head Phillips Countersunk Screws.
 Non-Adjustable Hinge.
 From Guangdong, China.

Description

CORE DIMENSIONS

Length	127mm
Width	76.2mm
Leaf Thickness	2.0mm
Knuckle Diameter	Ø12mm

DETAILS

Product Type	Non-Mortise, Ball Bearing, Butterfly Hinge
Base Material	SS304/SS201
Hinge Corners	Square
Hinge Pin Type	Non-Removable
Finial Cap	Standard Finial Cap
Number of Ball Bearing	2
Leaf Screw Holes	8
Edge Treatment	Deburred & Polished
Finish

ASSEMBLY

Installation Required	Yes
Parts	Flat-head Phillips Countersunk Screws

PACKAGING

Select Amount	White Box	Color Box	Blister Card
Unit Pack	1 piece/polybag	1 piece/polybag
Retail Box	1 pair/inner box	1 pair/inner box	1 pair/ blister card
Master Carton	50 boxes/export carton	50 boxes/export carton	50 blister card /export carton
