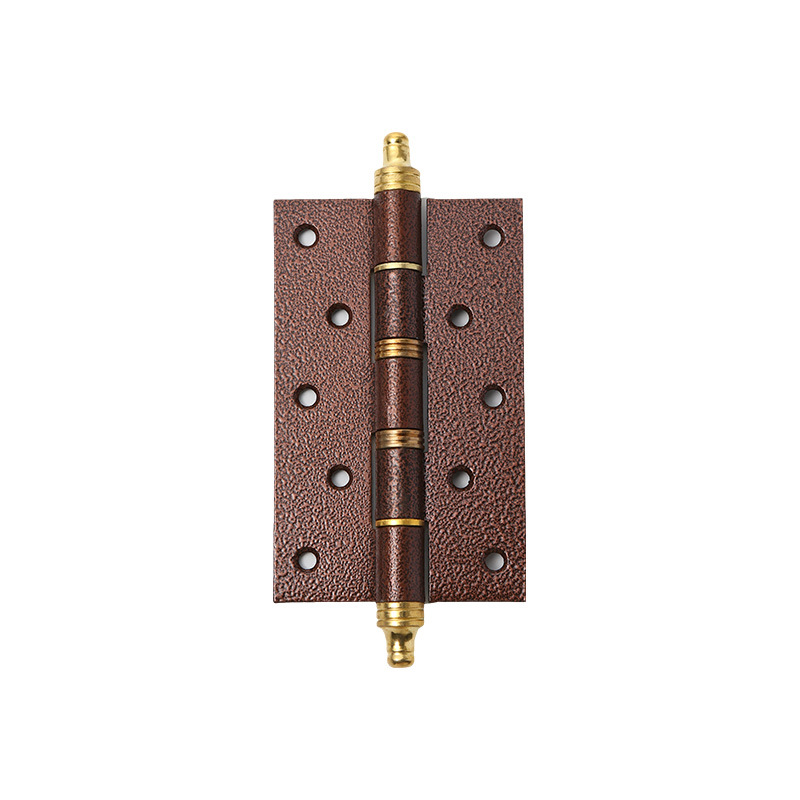

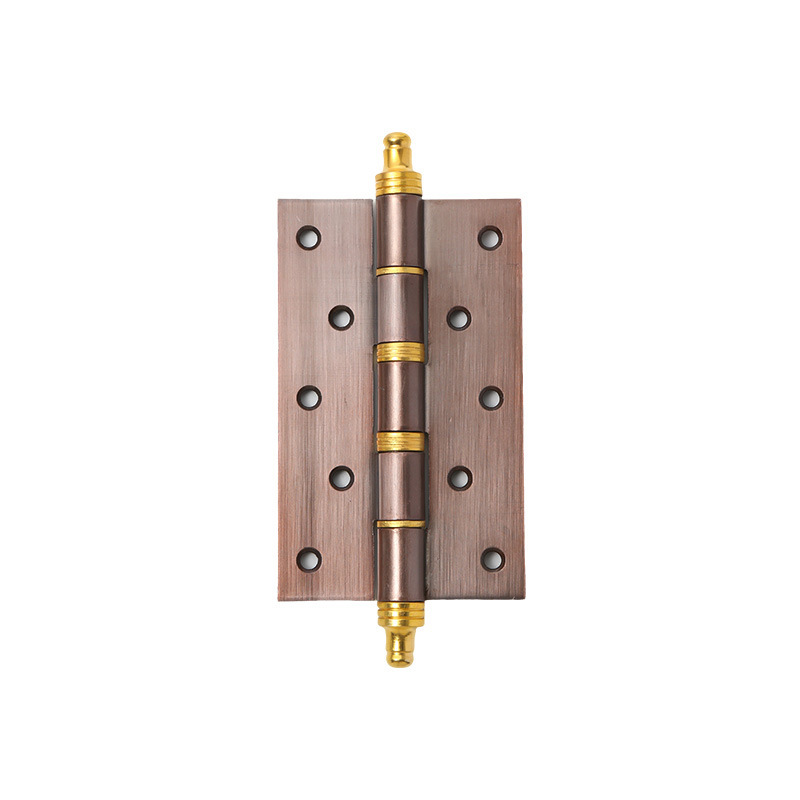

5"×3"×2.5mm Ø16 2BB Crown Head Finial Cap Butt Hinge

Jieyang Xingli Hardware Co., Ltd

Jieyang Xingli Hardware Co., Ltd

Previous

Next

 Item Code is HG5325.
 Machined for Precise Installation and Smooth Movement.
 Furnished with Rust-Proof Pins for Added Durability.
 Durable Design for Long-Lasting Performance.
 For Use on Residential Entry and Commercial Entry Doors.
 Engineered with Surface Treatment Technology for Corrosion-Free Performance.
 Ball Bearings Provide Silent Opening and Closing.
 Non-Rising Removable Pin with Tip and Plug.
 Hinges Come Two Per Box, with 10 Flat-Head Phillips Countersunk Screws.
 Non-Adjustable Hinge.
 From Guangdong, China.

Description

CORE DIMENSIONS

Length	170mm
Width	76mm
Leaf Thickness	2.5mm
Knuckle Diameter	Ø16mm

DETAILS

Product Type	Full Mortise, Ball Bearing, Butt Hinge
Base Material	Iron
Hinge Corners	Square
Hinge Pin Type	Non-Removable
Finial Cap	Crown Head
Number of Ball Bearing	2（with 2 brass washer）
Leaf Screw Holes	10
Edge Treatment	Deburred & Polished
Finish	AC/Spray Painting

ASSEMBLY

Installation Required	Yes
Parts	Flat-head Phillips Countersunk Screws

PACKAGING

Select Amount	White Box	Color Box	Blister Card
Unit Pack	1 piece/polybag	1 piece/polybag
Retail Box	1 pair/inner box	1 pair/inner box	1 pair/ blister card
Master Carton	50 boxes/export carton	50 boxes/export carton	50 blister card /export carton
