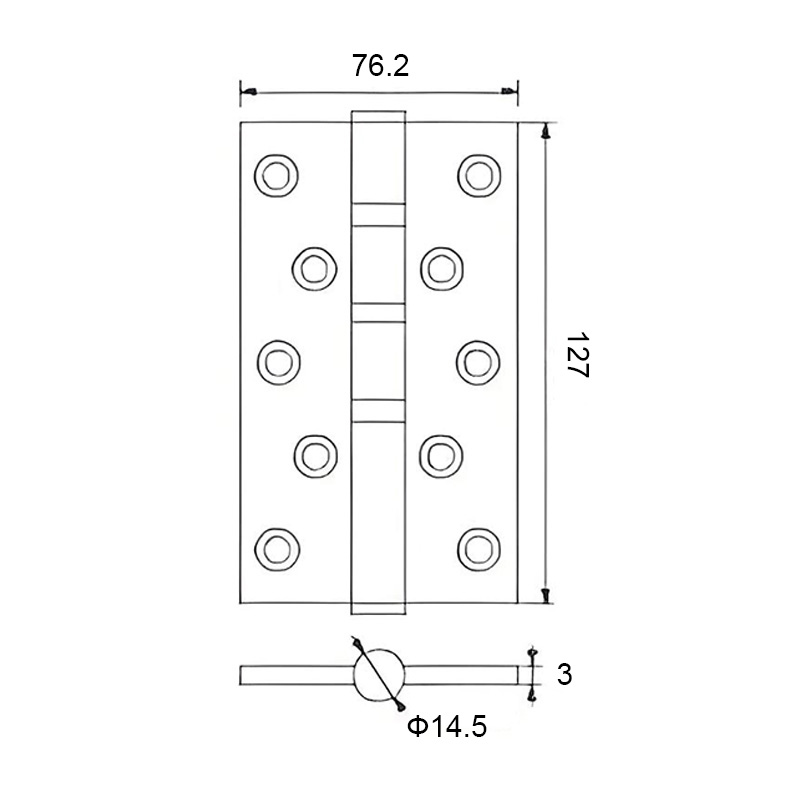

CORE DIMENSIONS
Length | 127mm |
Width | 76.2mm |
Leaf Thickness | 3.0mm |
Knuckle Diameter | Ø14.5mm |
DETAILS

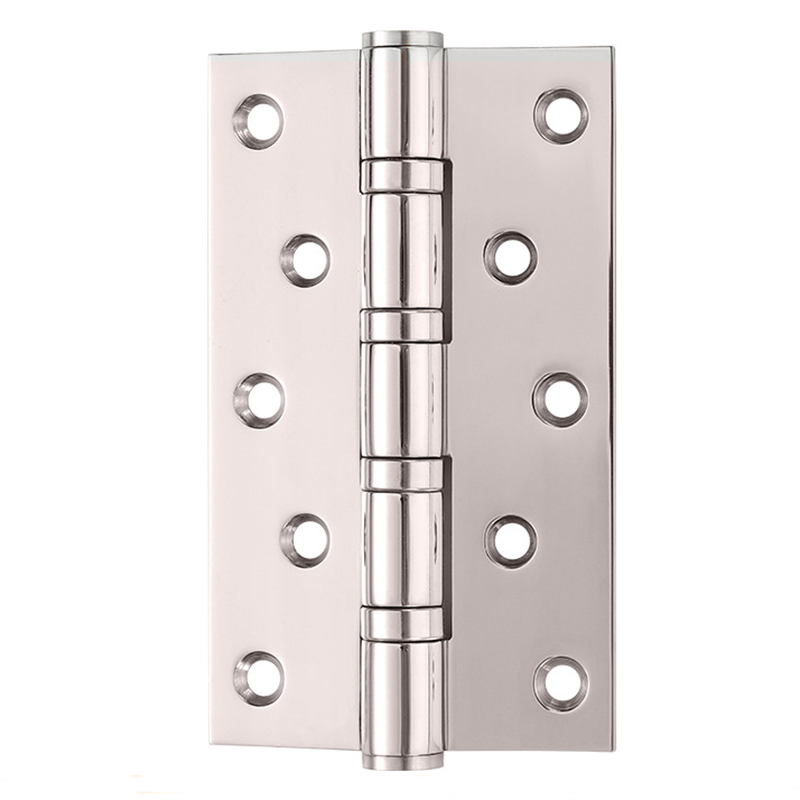

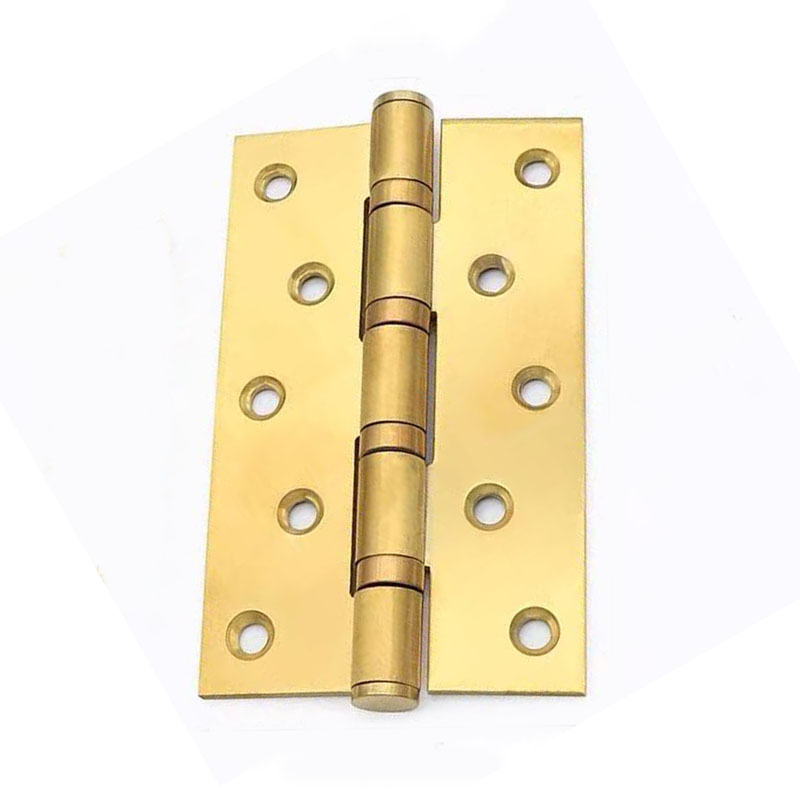

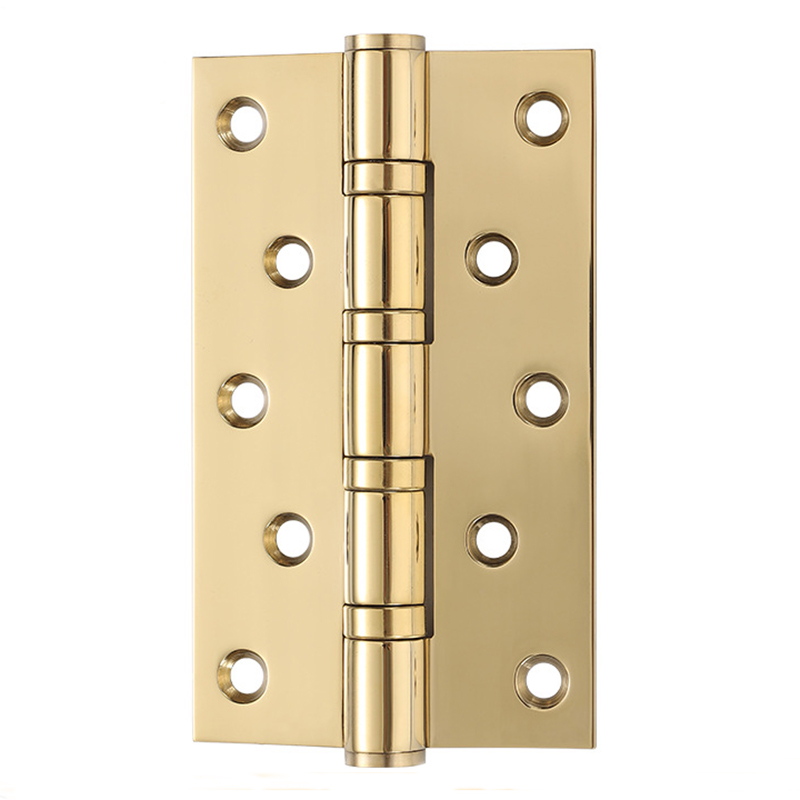

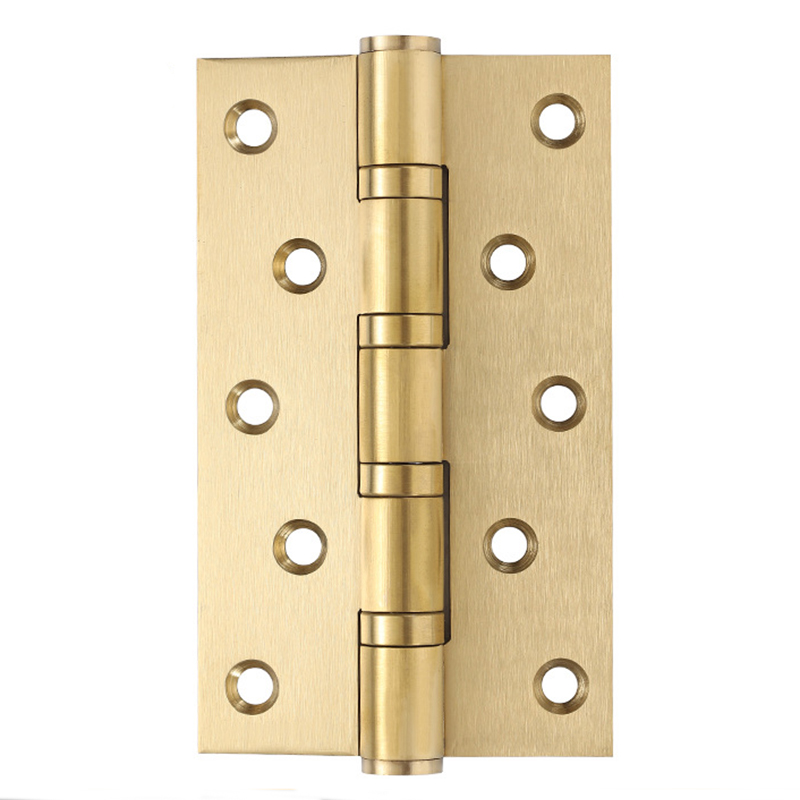

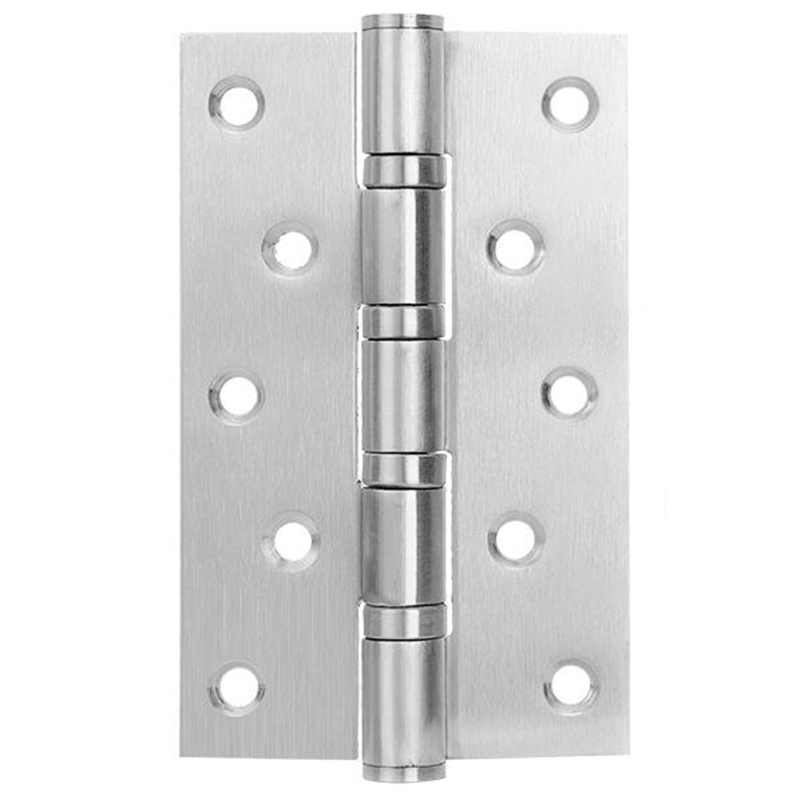

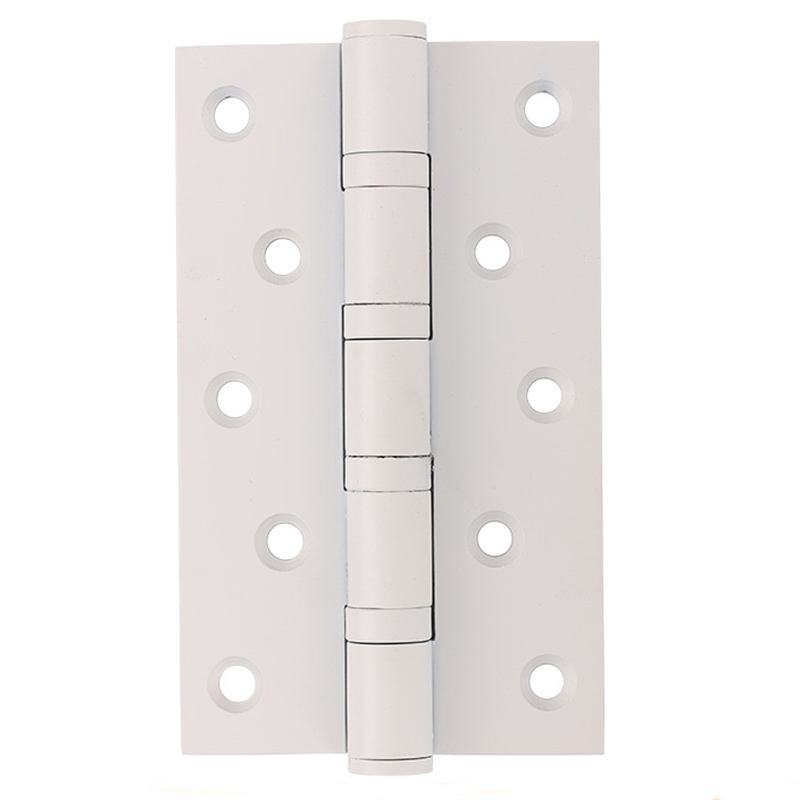

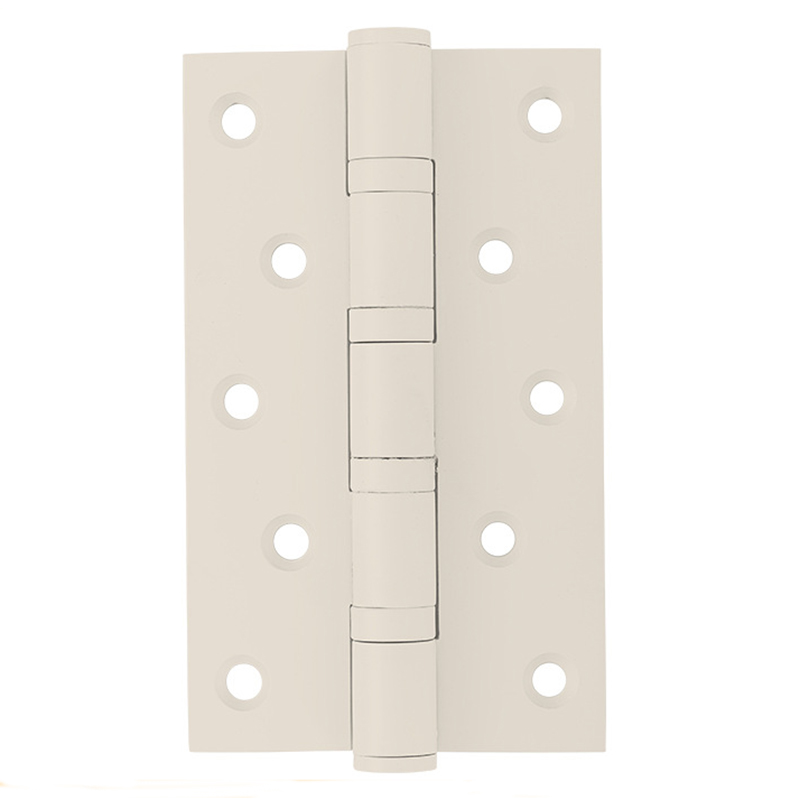

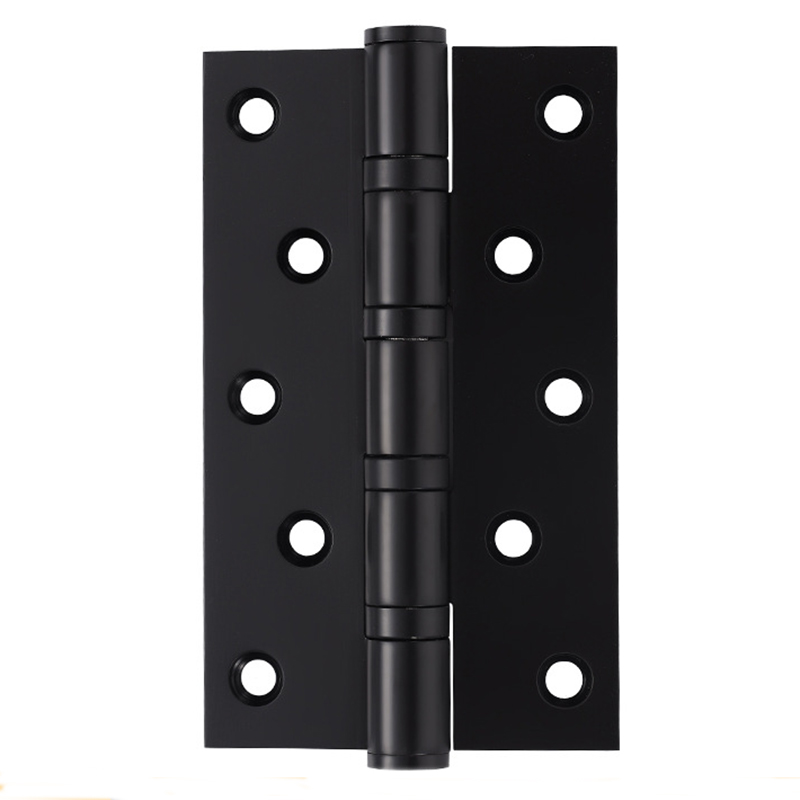

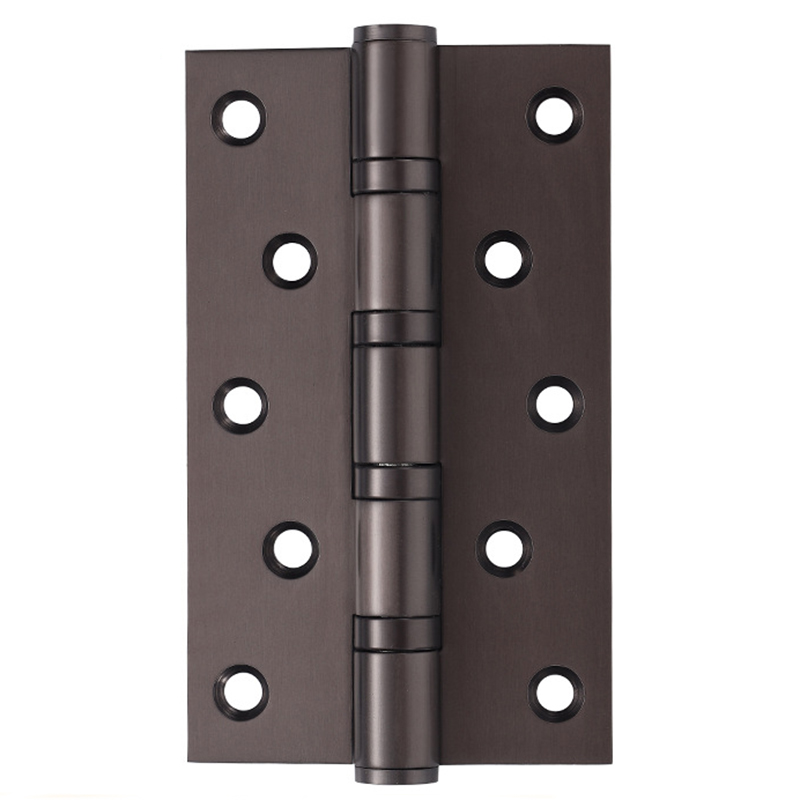

Product Type | Full Mortise, Ball Bearing, Butt Hinge |
Base Material | SS304/SS201 |
Hinge Corners | Square |
Hinge Pin Type | Non-Removable |
Finial Cap | Standard Finial Cap |
Number of Ball Bearing | 4 |
Leaf Screw Holes | 10 |
Edge Treatment | Deburred & Polished |
Finish |  |
ASSEMBLY
Installation Required | Yes |
Parts |
PACKAGING
Select Amount | White Box | Color Box | Blister Card |
Unit Pack | 1 piece/polybag | 1 piece/polybag | |
Retail Box | 1 pair/inner box | 1 pair/inner box | 1 pair/ blister card |
Master Carton | 50 boxes/export carton | 50 boxes/export carton | 50 blister card /export carton |
